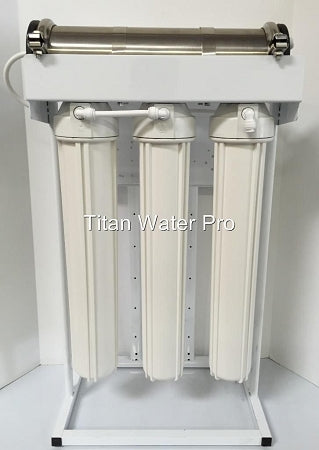

Designed to flow 25 GPH (Gallons Per Hour) of pure RO water with an astounding 1:1 ratio—High flow rates and water savings never before seen in a package so affordable and durable. Utilizing the best membrane technology in the world and mounted on stand,
For those who demand even more performance, the Titan 600 can be used with a BP-600 pressure-boosting pump to DOUBLE GPD output.
1:1 system ratio
Membrane: One Axeon 600 HF TFC membrane element. The highest flow membrane for maximum rejection 98.5% nominal (96% minimum) of impurities.
Carbon: One Coconut Carbon Filter rated for 34,000 gallons chlorine reduction. KDF/CAT carbon available as an upgrade.
Sediment: One High Flow pleated sediment filter, washable and reusable.
GAC: One Granulated Activated Carbon Filter
Frame: Power Coated Steel Frame Stand.
Membrane Flush Valve: for easy cleaning and significant extension of membrane life.
Adjustable Flow Restrictor (For ratio adjustment fine tuning)
Easy Maintenance & Operation: Systems feature a compact design, are pre-plumbed and have all of their components strategically located for easy access and inspection.
|Minimum Feed Pressure
|Recommended Feed Pressure
|Recovery (system ratio 1:1)
|Dimensions LxWxH (in)
|Nominal % Rejection
|Minimum NACL Rejection
Test Conditions: Permeate flow and salt rejection based on 550 ppm, 80 psi, 77°F (25°C), pH 7, and 50% recovery
Note: Higher TDS and/or lower temperatures will reduce the system's production.
Great for restaurants, distilleries, breweries, hydroponics and many more applications.
Membranes are tested at 77 degree Fahrenheit temperature and 60 PSI water pressure. (Best efficiency & Production)
*If you have very hard water, to prevent scaling/fouling of membrane, pre-water treatment is recommended.
